Outdoor aluminum pergola

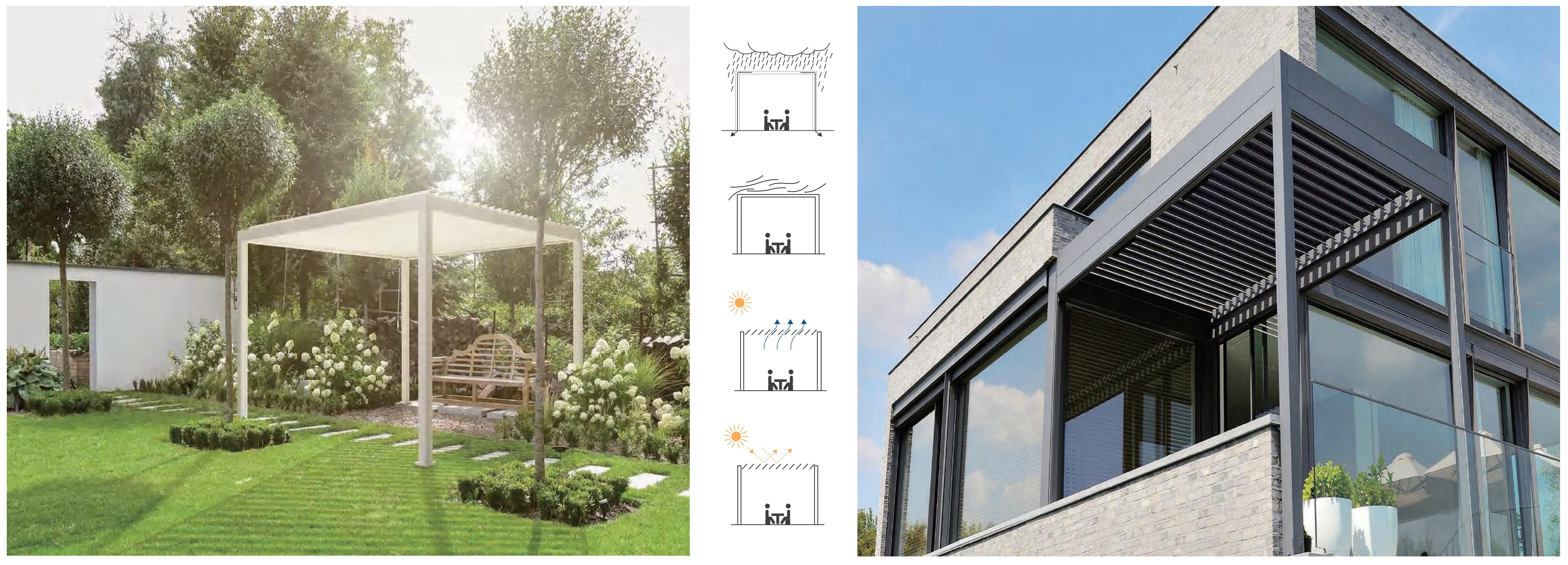

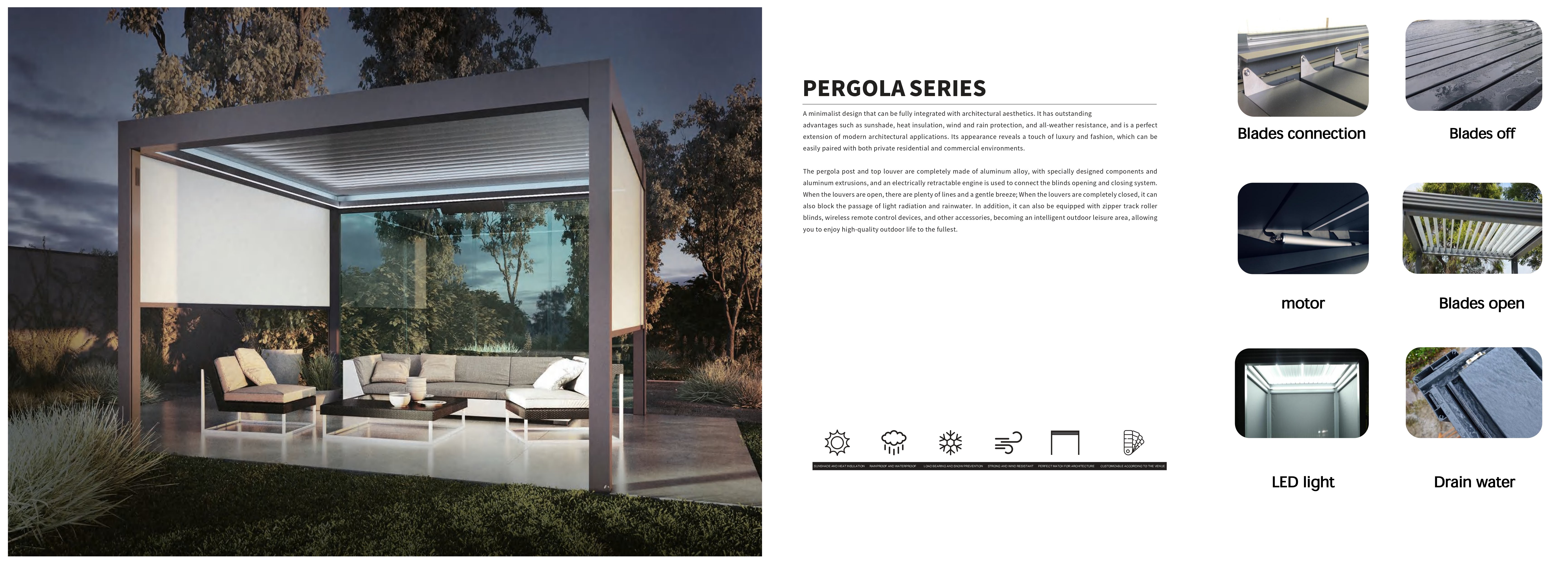

1.Adjustable Louver System

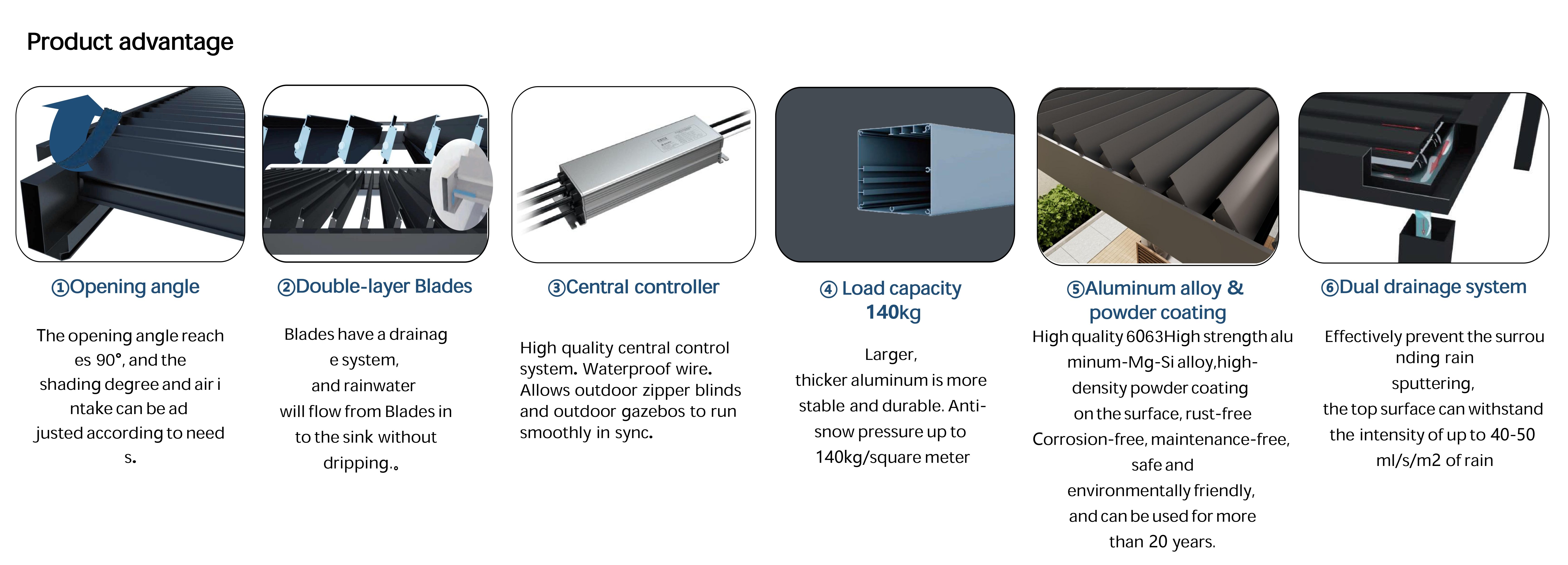

The pergola’s aluminum louvers feature a 90° full opening and closing angle, allowing free adjustment of shading and ventilation according to actual needs. Equipped with a motor-driven control system, the louvers realize smooth and synchronous rotation, and are integrated with LED lighting for enhanced outdoor lighting experience. A professional drainage system is built into the double-layer louvers, guiding rainwater into the sink without dripping, and the dual drainage system of the whole pergola can effectively resist rain splashing and withstand high-intensity rainfall impact on the top surface.

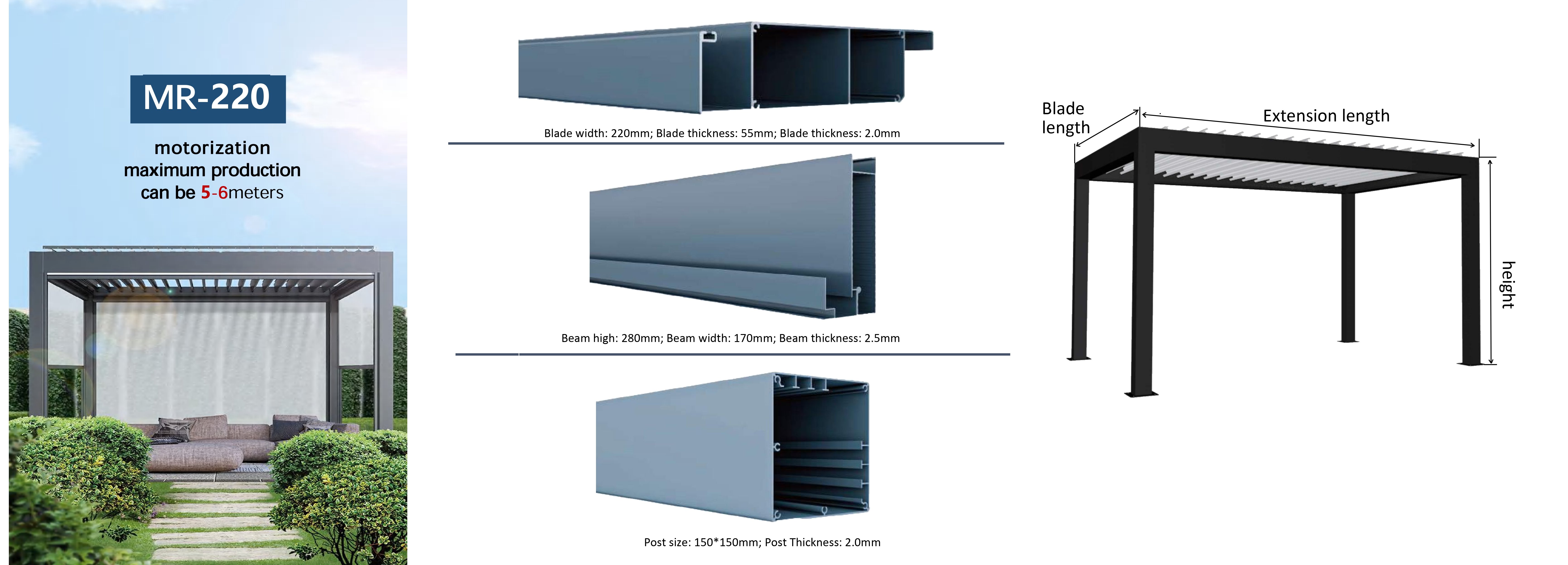

• Heavy-duty aluminum material (for ≥20 ㎡ areas): Blade width 220mm, beam size 280125mm (thickness 2.3mm), post size 180180mm (thickness 2.7mm)

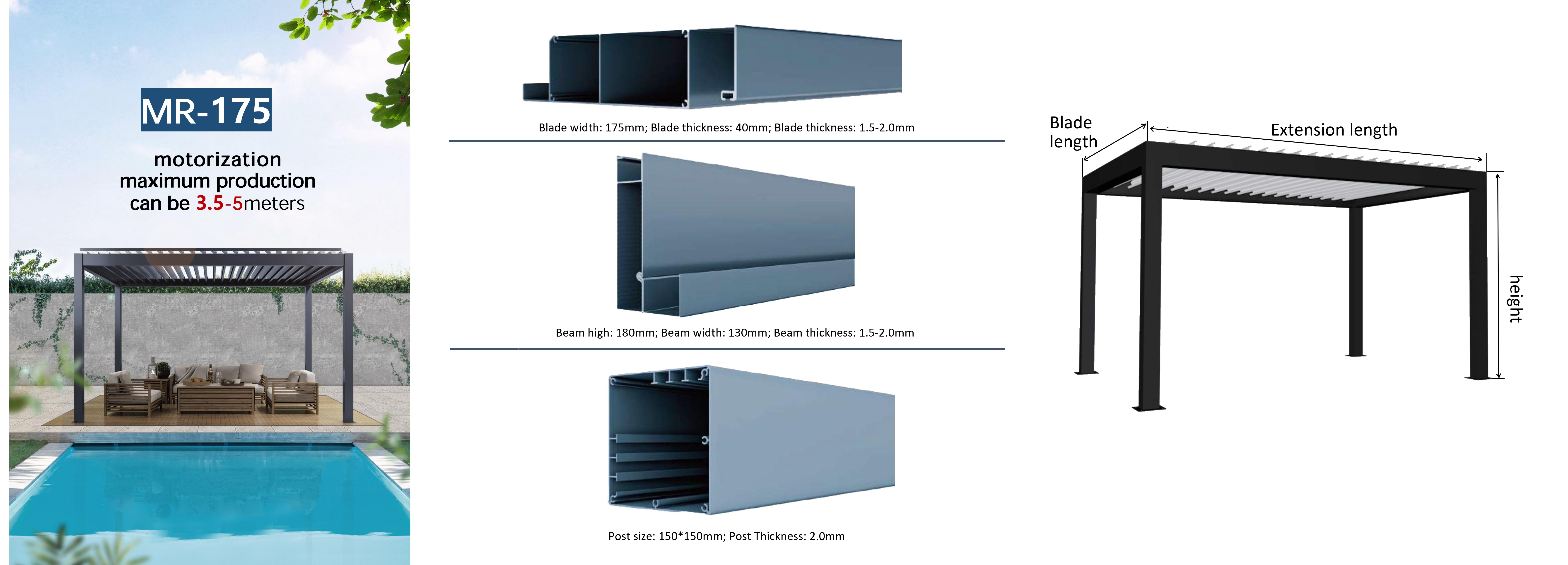

• Medium-sized aluminum material (for ≤18 ㎡ areas): Blade width 175mm, beam size 175120mm (thickness 2.3mm), post size 150150mm (thickness 2.5mm)

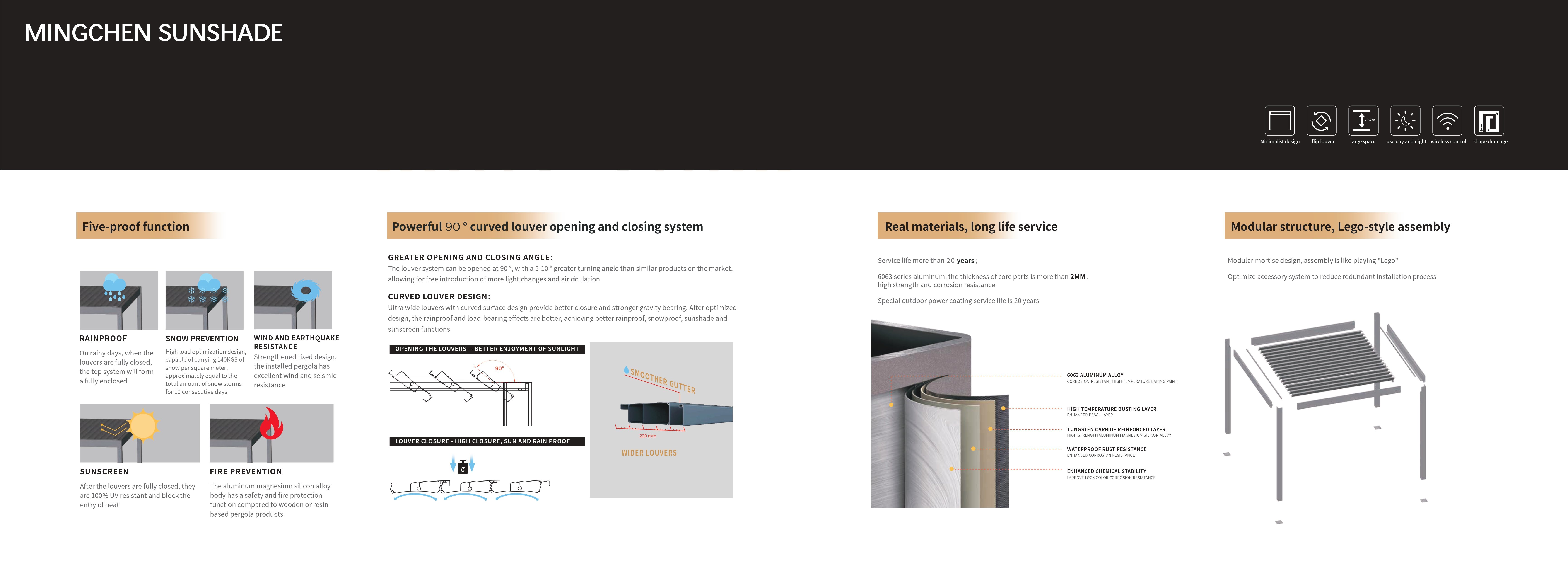

  The thickened aluminum structure ensures excellent load capacity, stably withstanding heavy snow pressure per square meter, and has five-proof functions including snow prevention, wind resistance, sun protection and fire prevention.

3.Intelligent & Convenient Control

Configured with a high-quality waterproof central controller, it enables synchronous and smooth operation of the pergola and matching outdoor zipper blinds with waterproof wires, realizing integrated intelligent control of the whole outdoor space.

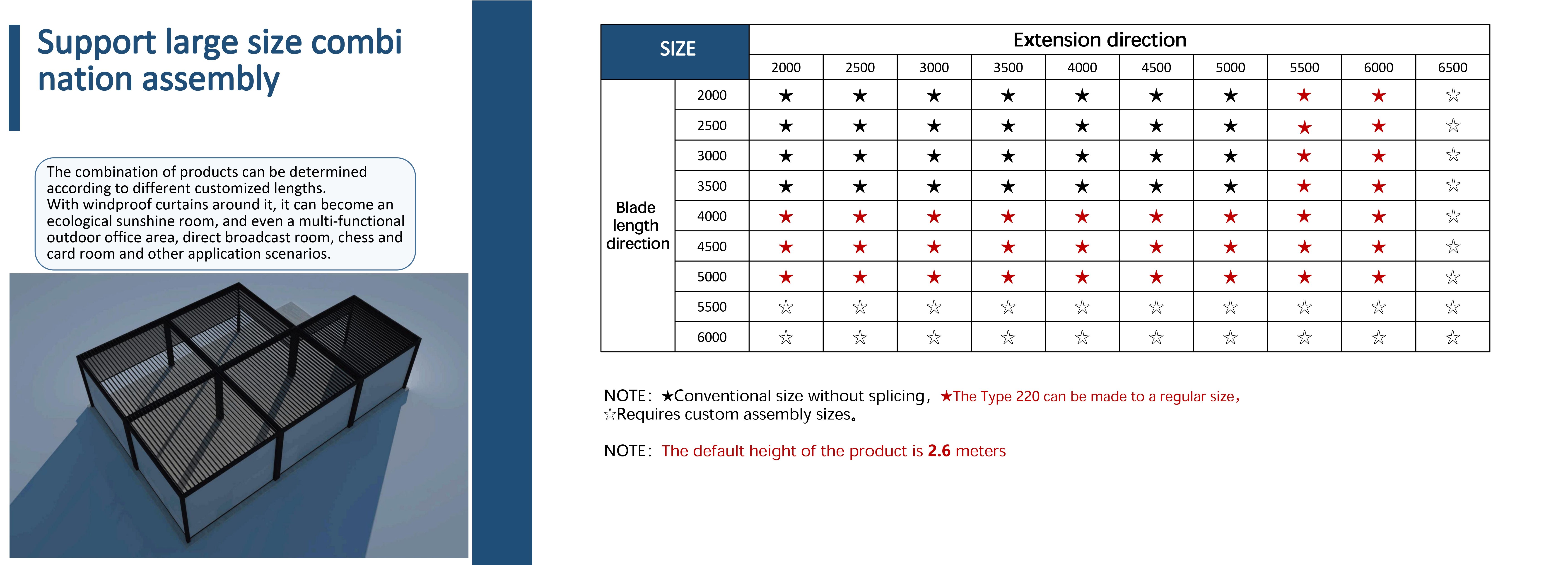

4.Flexible Modular Design

Featuring Lego-style modular assembly, the pergola supports large-size combined installation and customized assembly according to actual needs, with strong scalability. The default height of the product is standardized, and the louver width (200cm ≤ W ≤ 450cm) and overall height (250cm ＜ H ＜ 280cm) can be customized, adapting to various outdoor space layouts.

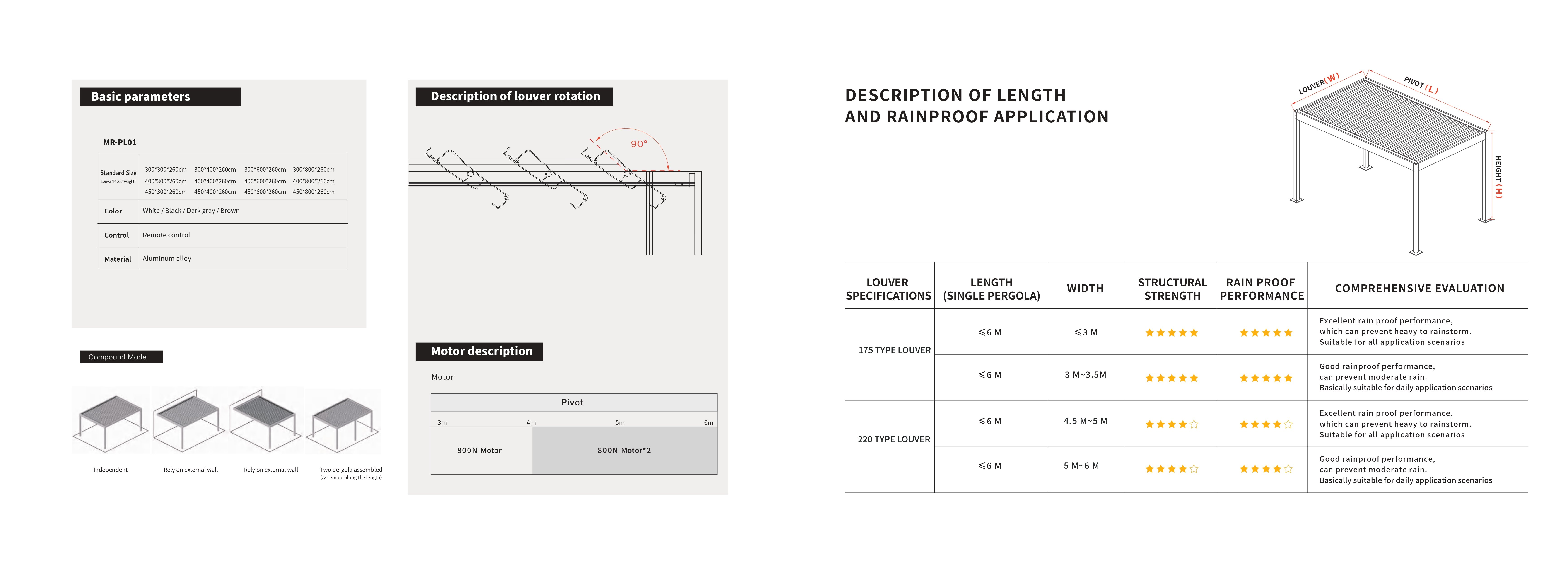

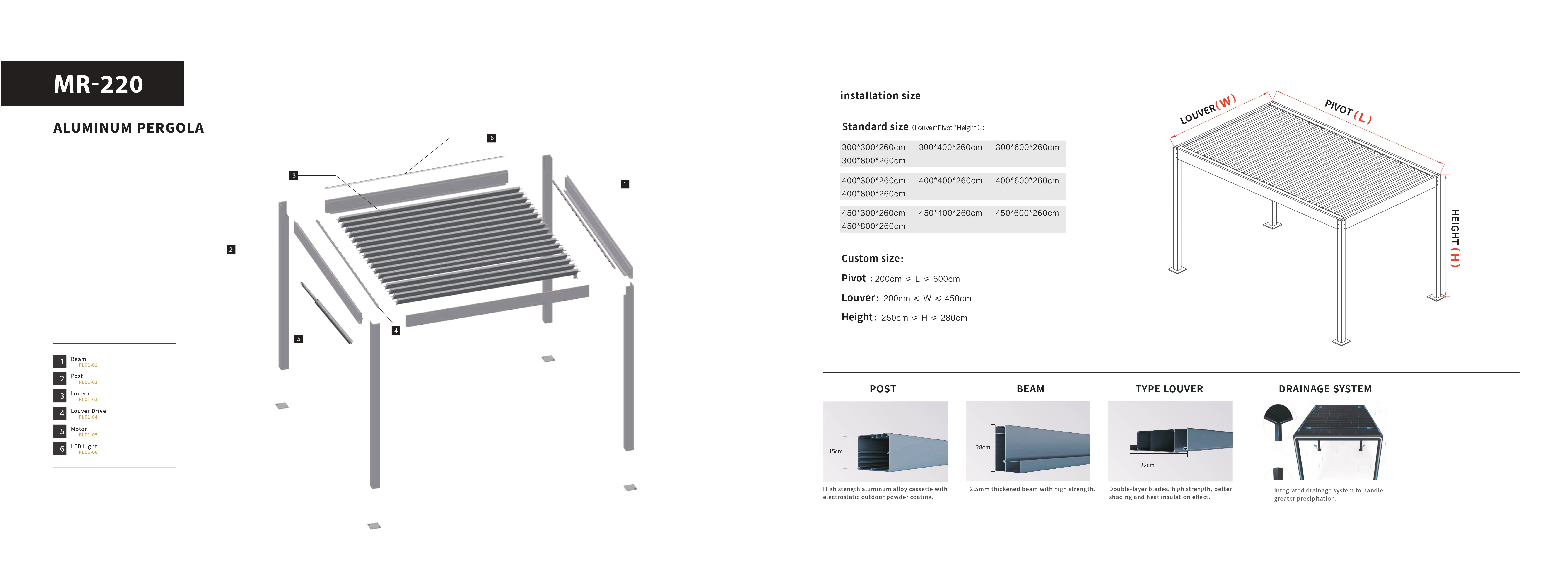

Standard & Custom Sizes

• Standard installation sizes (LouverPivotHeight): 300300260cm, 300600260cm, 300800260cm, 400600260cm, 400800260cm, 450600260cm, 450800260cm
• Custom size range: Pivot can be customized within 200cm × L × 600cm; louver width is limited to 200-450cm, and height is adjustable between 250-280cm.

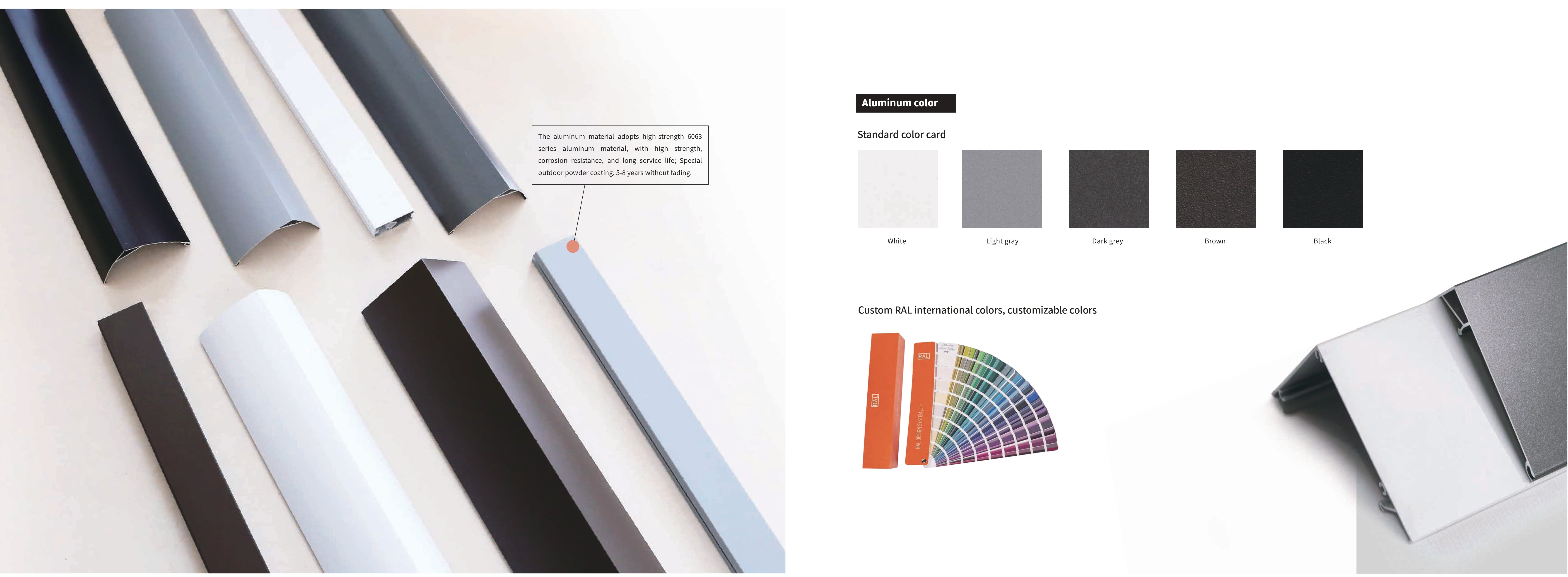

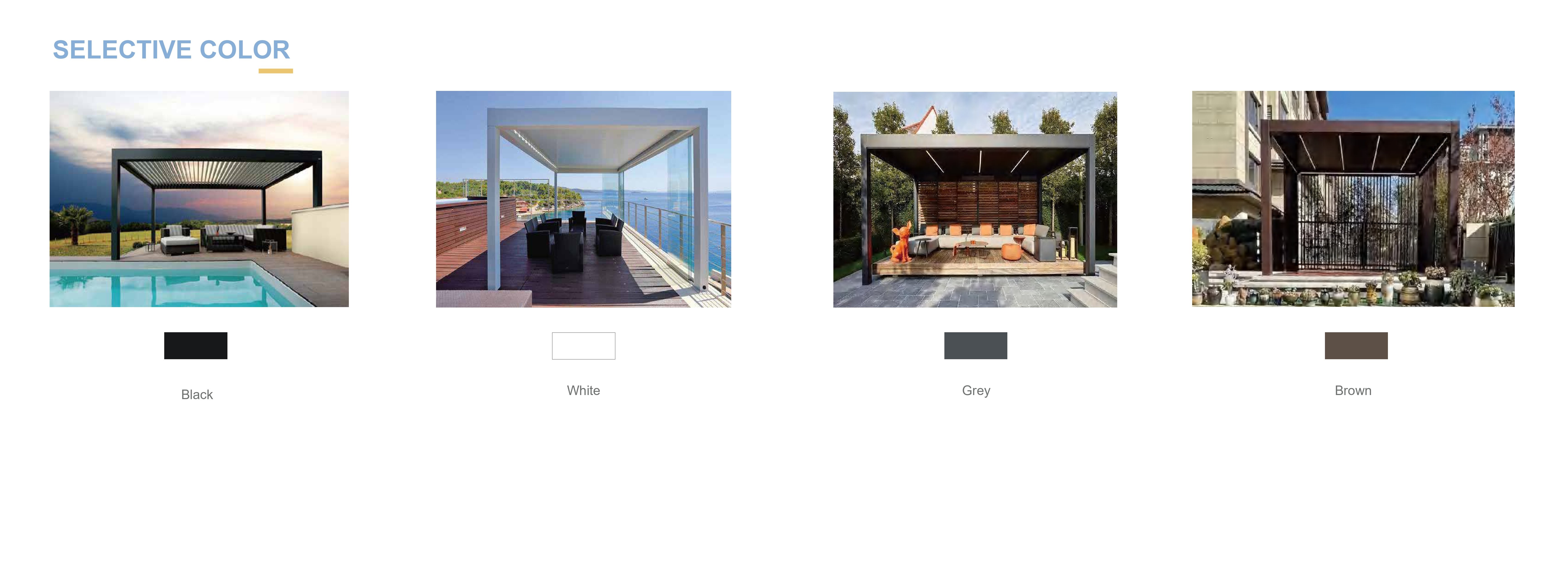

Color Options

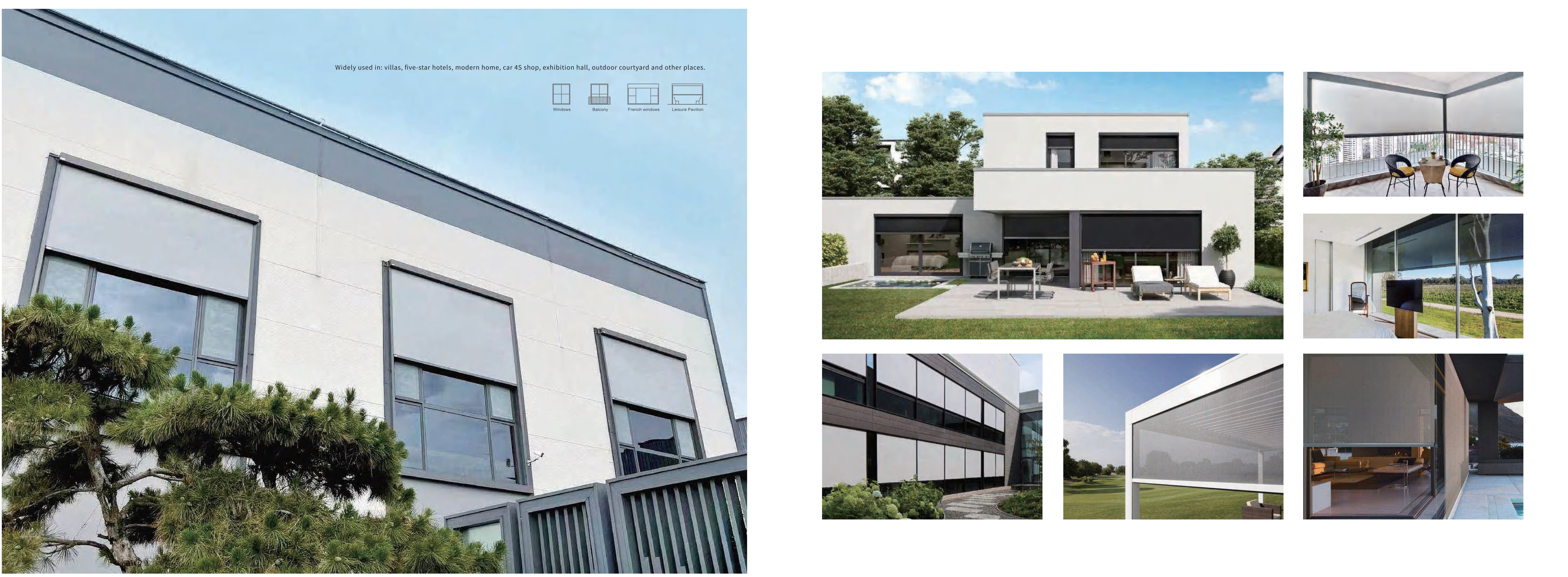

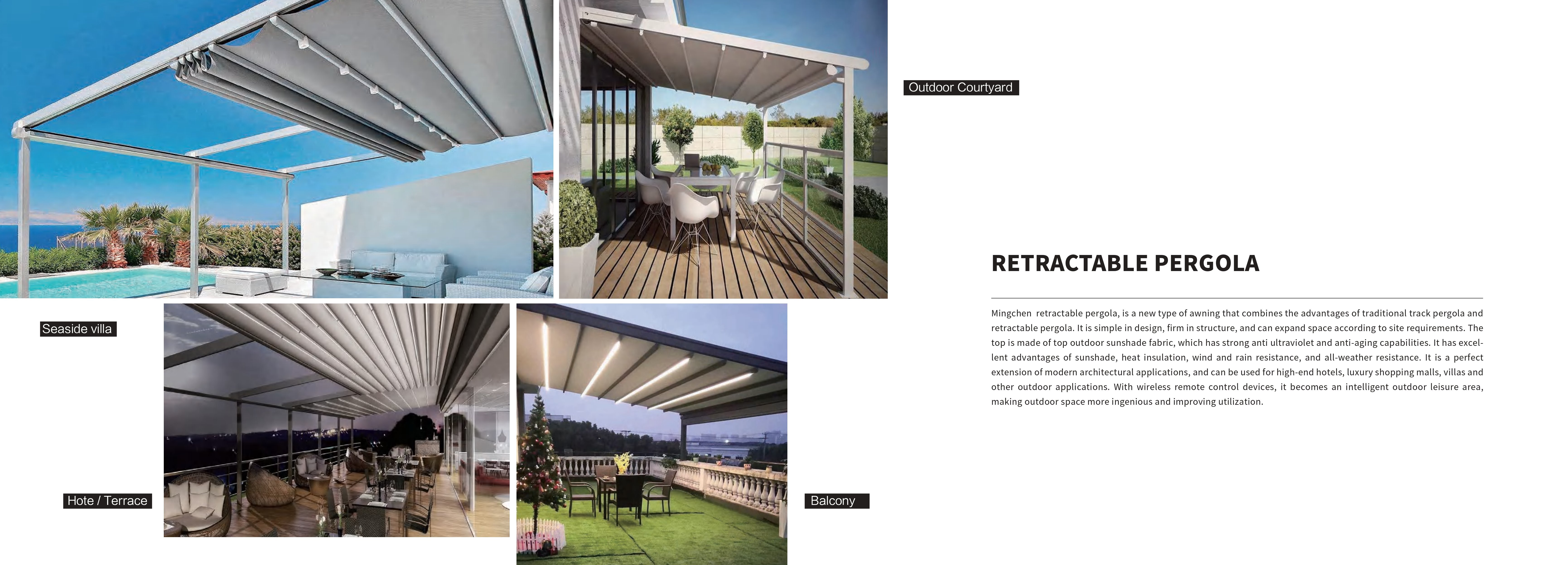

Diverse Application Scenarios

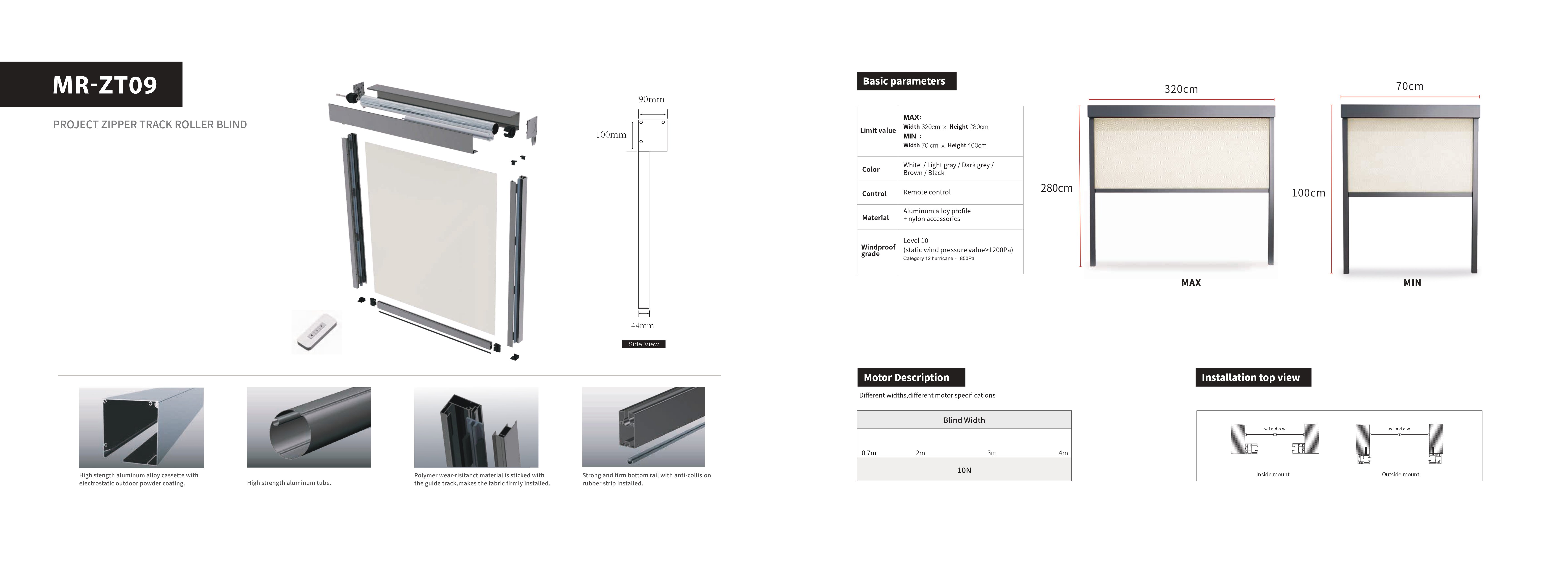

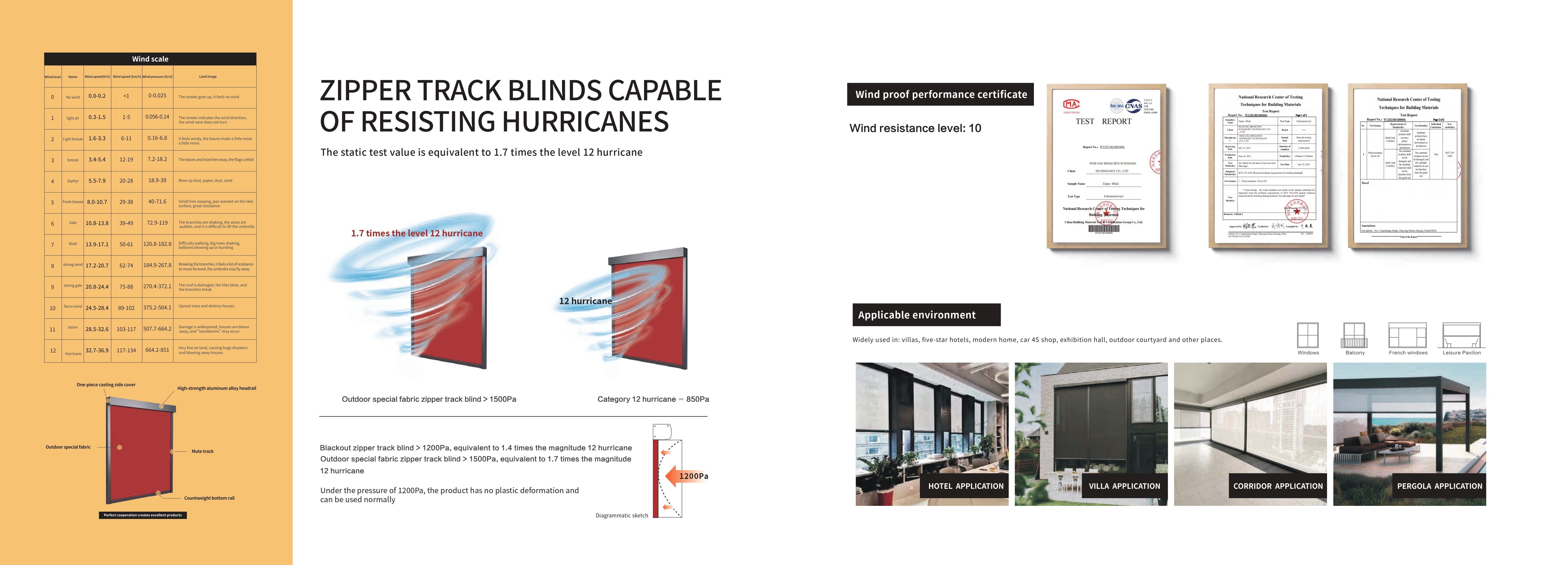

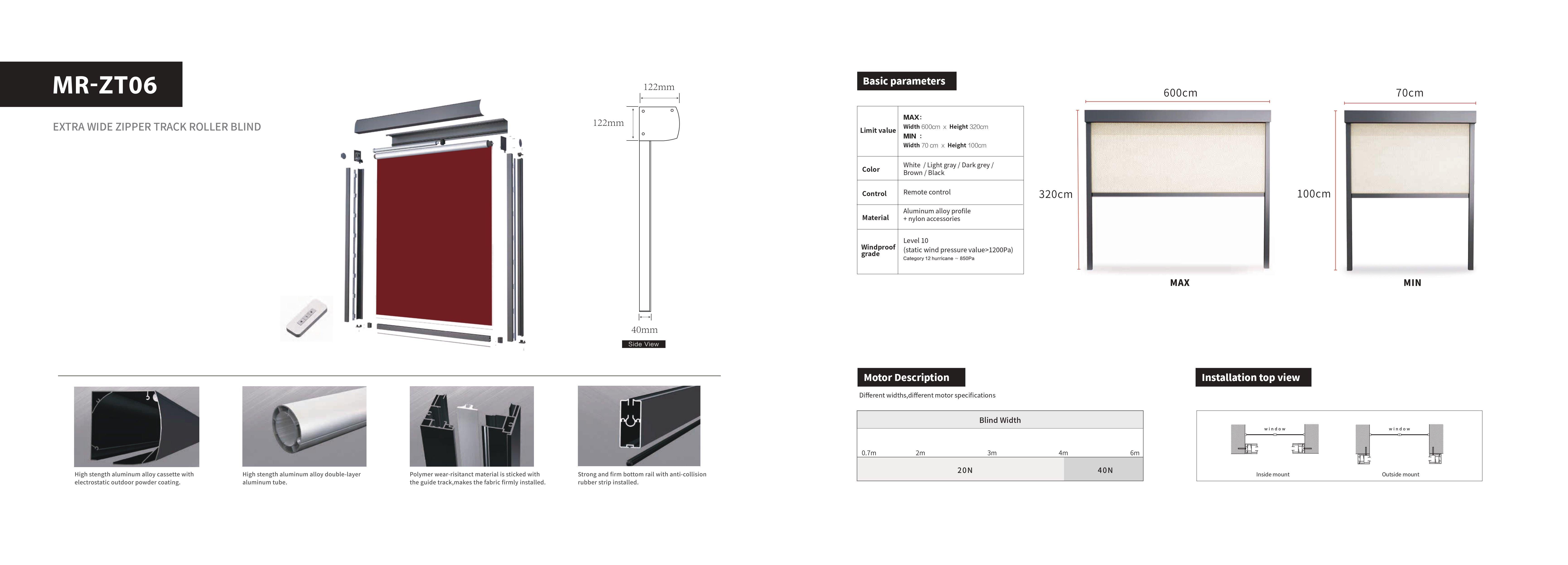

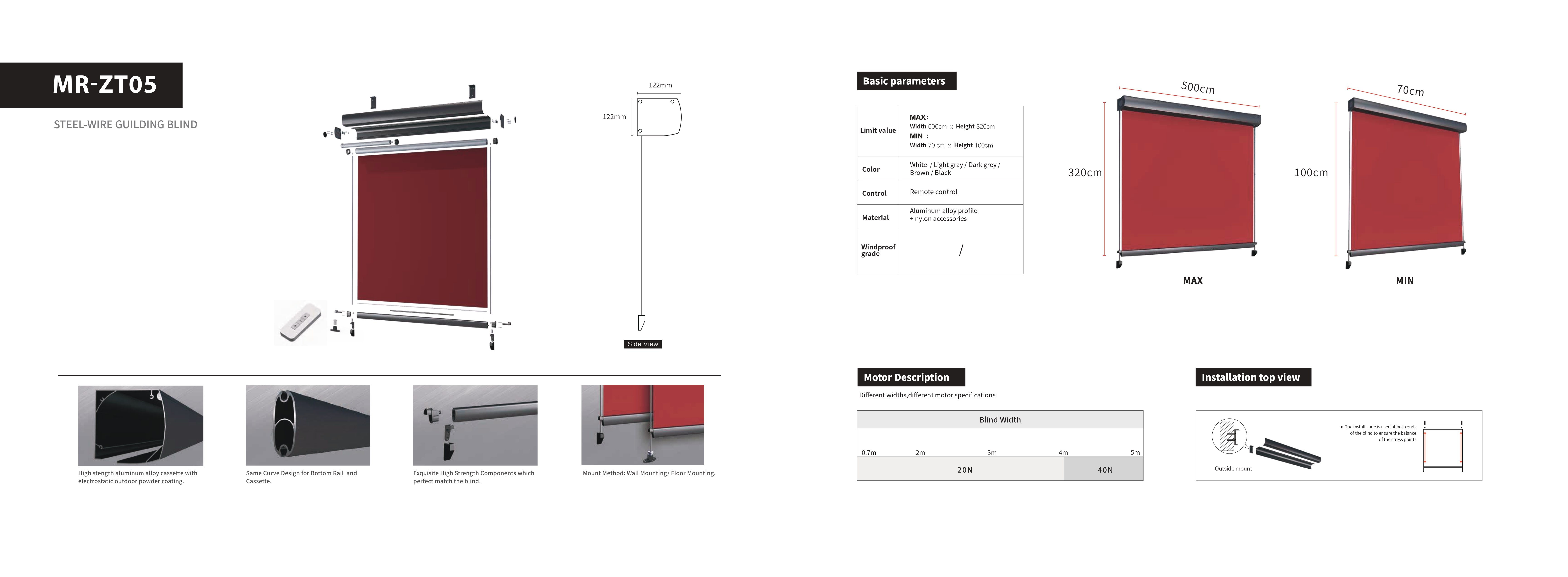

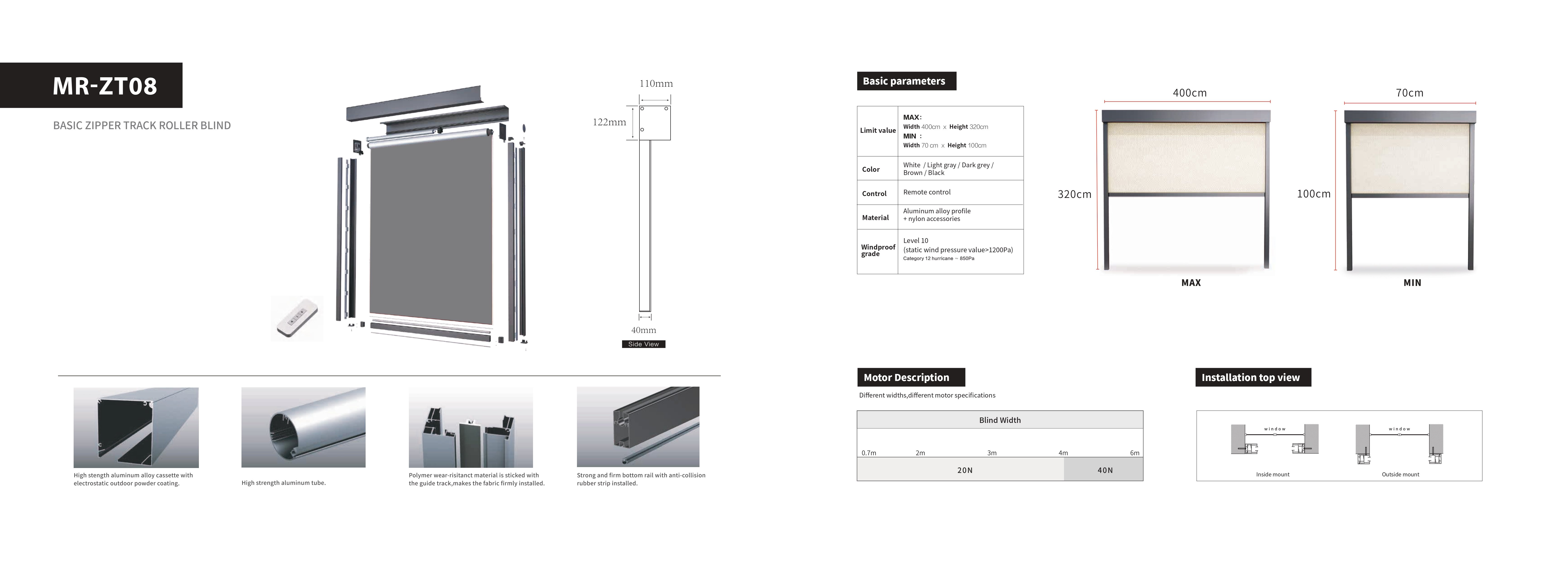

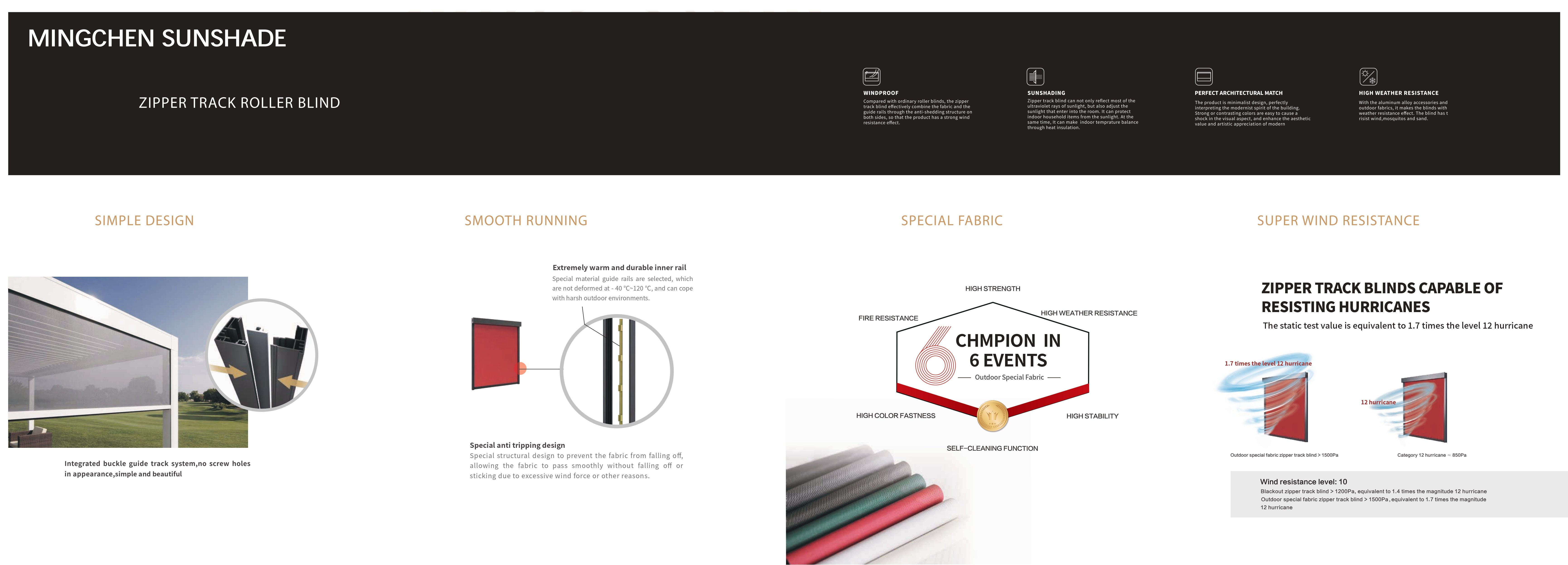

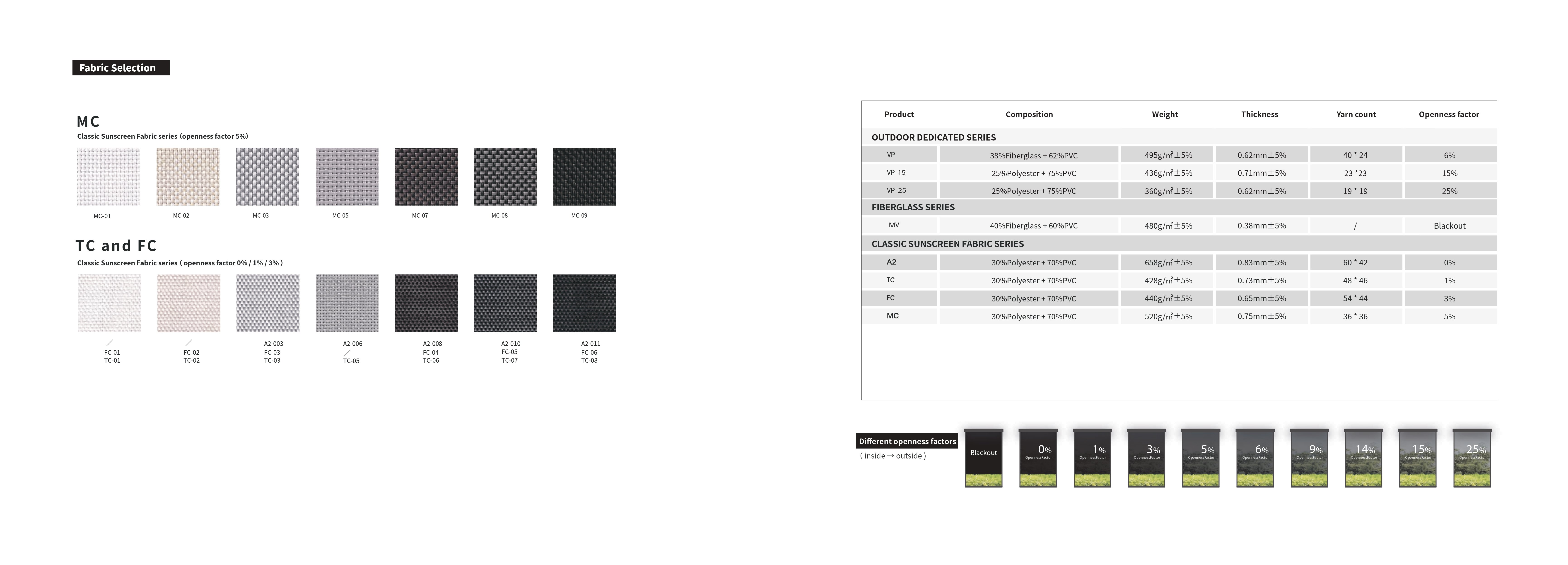

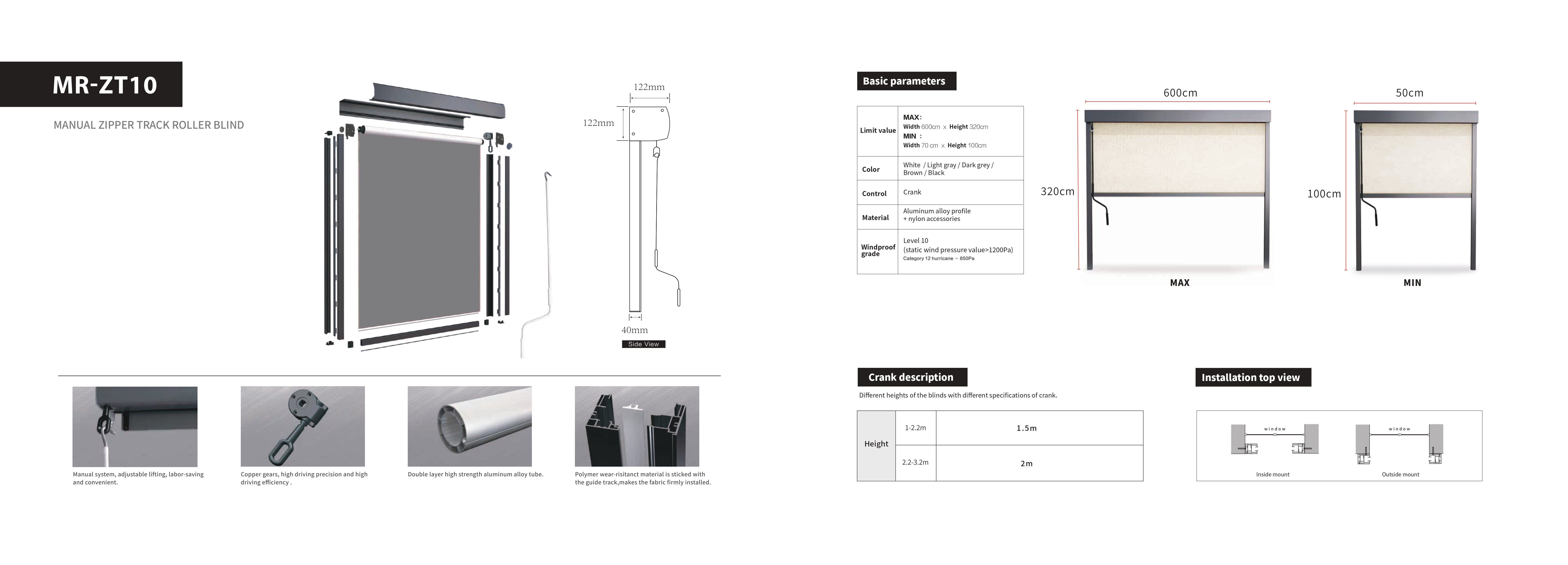

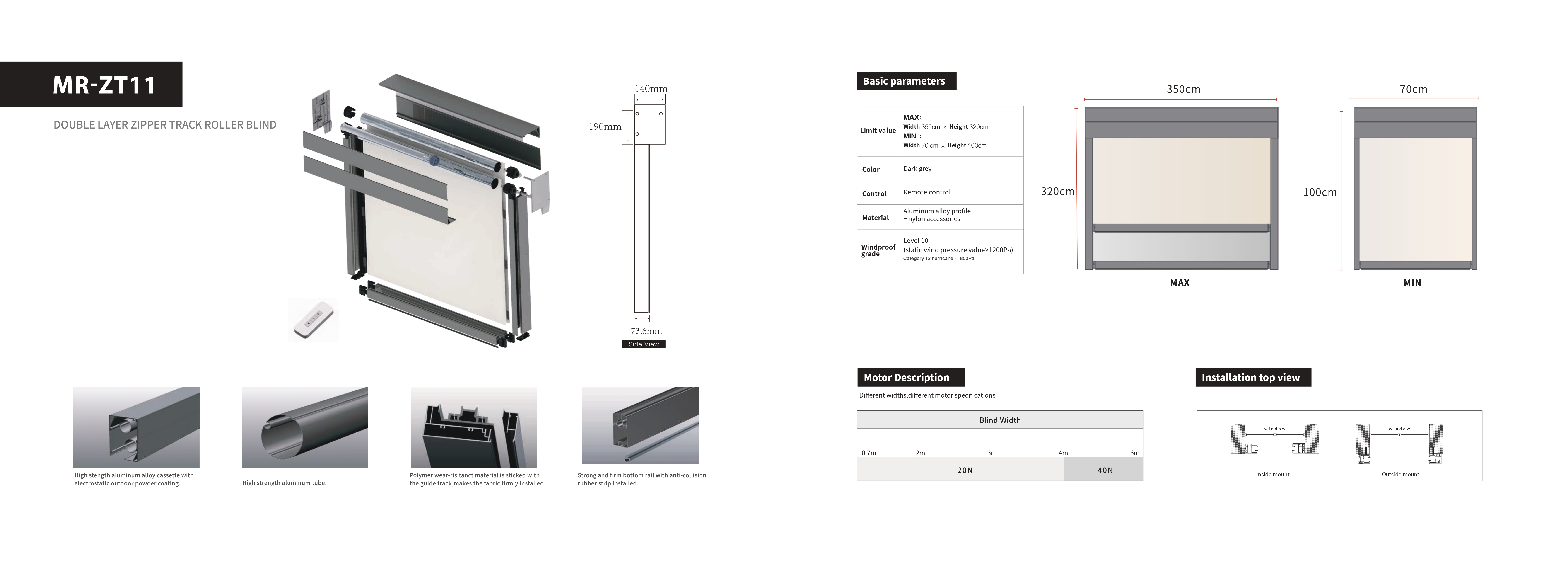

Perfect Matching Accessory: Zipper Track Blinds
